Tip 77: Sybase SQL Anywhere
Performance Tips & Techniques


26 - Diagnose Problems With Runtime Properties

SQL Anywhere offers built-in functions that can retrieve three kinds of runtime statistics: Connection_Property() returns information related to a single connection, DB_Property() returns information about a single database, and Property() returns information about an engine as a whole. These functions provide more information than either SQL Central or the NT Performance Monitor because those facilities only display engine properties.

Figure 26A shows how ISQL can be used to call these functions. In this example the CommLink connection property names the protocol in use between DBCLIENT and DBSRV50, the ConnCount database property specifies how many connections to the database are in use, and the DiskRead and DiskWrite engine properties say how many actual I/O operations have been performed by the server.

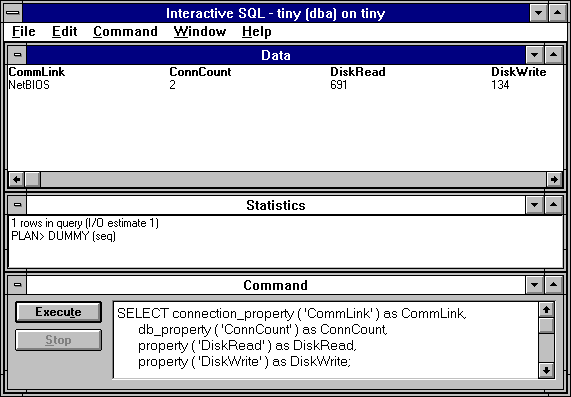

Figure 26A - Runtime Properties Via ISQL

The property functions and the available property names are described in the Help file DBENG50W.HLP under "System Functions" as shown in Figure 26B.

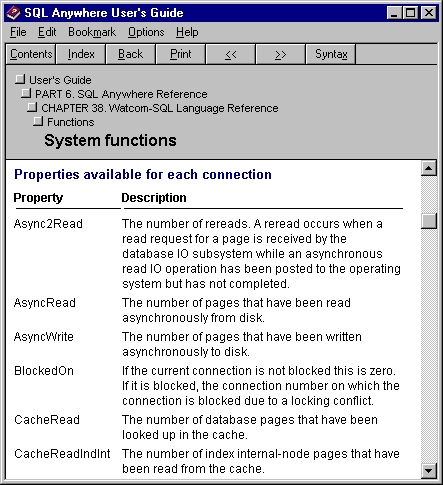

Figure 26B - Runtime Properties Described In DBENG50W.HLP

Application programs can also retrieve these properties as shown in Figures 26C and 26D. This means you can write code that is self-diagnosing when it comes to some runtime performance problems. Since the Connection_Property() function defaults to returning information about "this connection" it is especially convenient for an application to make its own calls rather than use ISQL and try to figure out what the application's connection number is.

Figure 26C - Selecting Properties In PowerBuilder
string ls_CommLink

long   ll_ConnCount, ll_DiskRead, ll_DiskWrite


SELECT connection_property ( 'CommLink' ) as CommLink,

       db_property ( 'ConnCount' ) as ConnCount,

       property ( 'DiskRead' ) as DiskRead,

       property ( 'DiskWrite' ) as DiskWrite

  INTO :ls_CommLink,

       :ll_ConnCount,

       :ll_DiskRead,

       :ll_DiskWrite

  FROM sys.dummy

 USING SQLCA;

IF SQLCA.SQLCode <> 0 THEN

   MessageBox ( "Error", "SELECT failed" )

   RETURN

END IF


MessageBox ( "Properties", &

   "CommLink:~t" + ls_CommLink + "~r~n" &

 + "ConnCount:~t" + string ( ll_ConnCount ) + "~r~n" &

 + "DiskRead:~t" + string ( ll_DiskRead ) + "~r~n" &

 + "DiskWrite:~t" + string ( ll_DiskWrite ) )

Figure 26D - Runtime Properties Via PowerBuilder
